Auto UV Unwrap Docs

1Installation

Auto UV Unwrap is a Blender extension. You get one .zip that works on every supported platform. Do not unzip it.

Open Blender 4.2 or newer.
Drag and drop the .zip file onto the Blender window, or go to Edit › Preferences › Get Extensions, open the ▾ menu in the top right and choose Install from Disk…
Make sure Auto UV Unwrap is enabled in the extensions list.
Press N in the 3D Viewport: you will see a new Auto UV tab.

The add-on preferences show whether the bundled xatlas library loaded on your system. Smart Parts and Smart UV Project work without it.

Updating

Install the new .zip the same way. Blender replaces the old version. Restart Blender if the panel does not refresh.

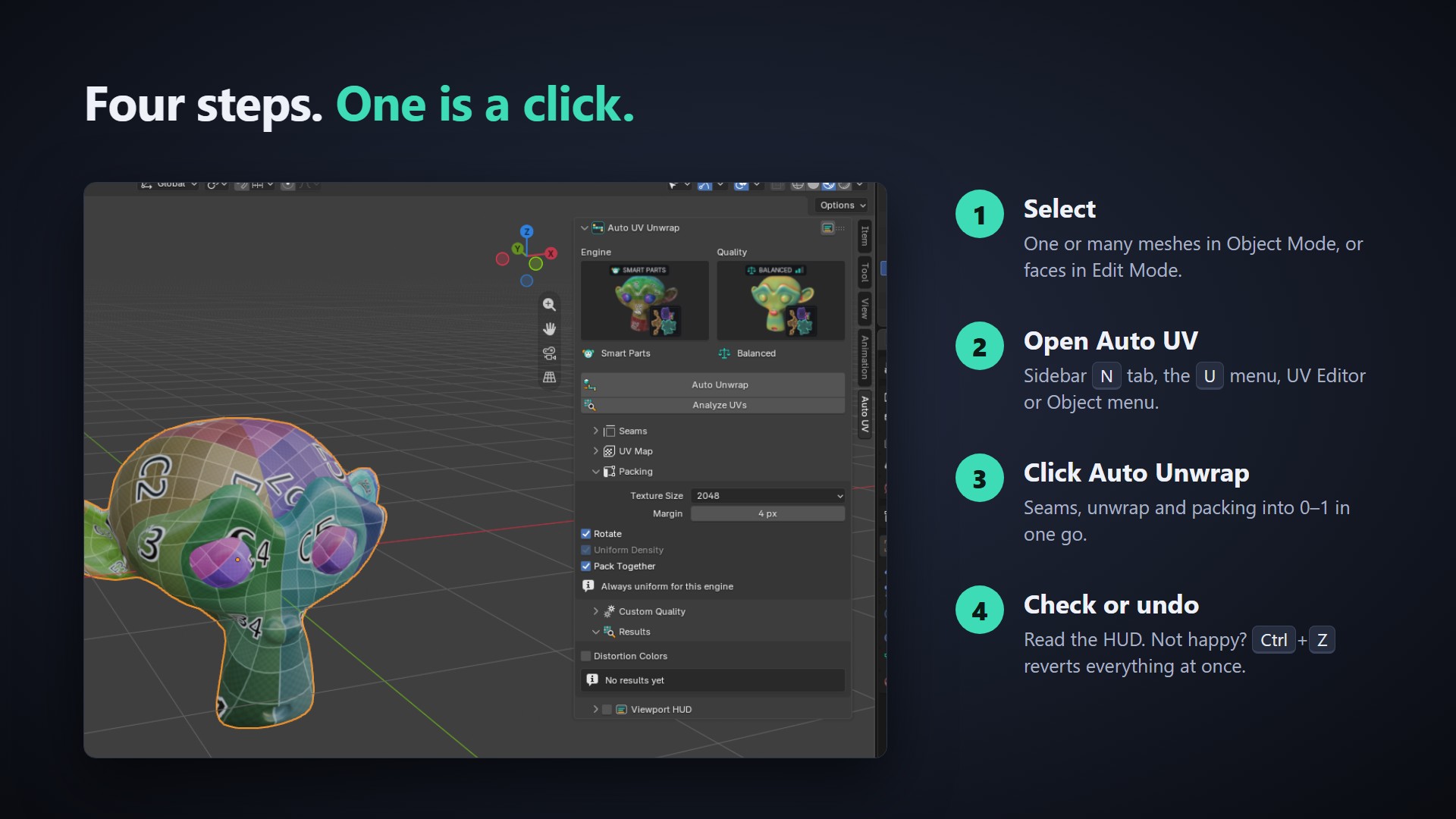

2Quick start

Select one or more mesh objects in Object Mode, or select faces in Edit Mode.
Open the Auto UV tab in the sidebar (N).
Leave Engine on Smart Parts and Quality on Balanced.
Click Auto Unwrap.

Seams are written to the mesh, the UVs are unwrapped and packed into 0–1, and the Results panel, the status bar and the HUD show the numbers. Not happy? Press Ctrl+Z once: UVs, seams, selection and mode all go back to how they were.

3Where to find it

Place	What is there
3D Viewport › Sidebar › Auto UV	The full panel: engine, quality, Auto Unwrap, Analyze UVs, all settings, Results and the HUD switch.
Edit Mode › `U` menu	Auto UV Unwrap entry at the bottom of the UV menu.
UV Editor › UV menu	Auto UV Unwrap entry.
UV Editor › Sidebar › Auto UV	Engine, quality, the two buttons, Results and a toggle for Blender's stretch overlay.
3D Viewport › Object menu	Auto UV Unwrap entry for Object Mode.

The menu entries use the settings from the sidebar panel.

4Engines

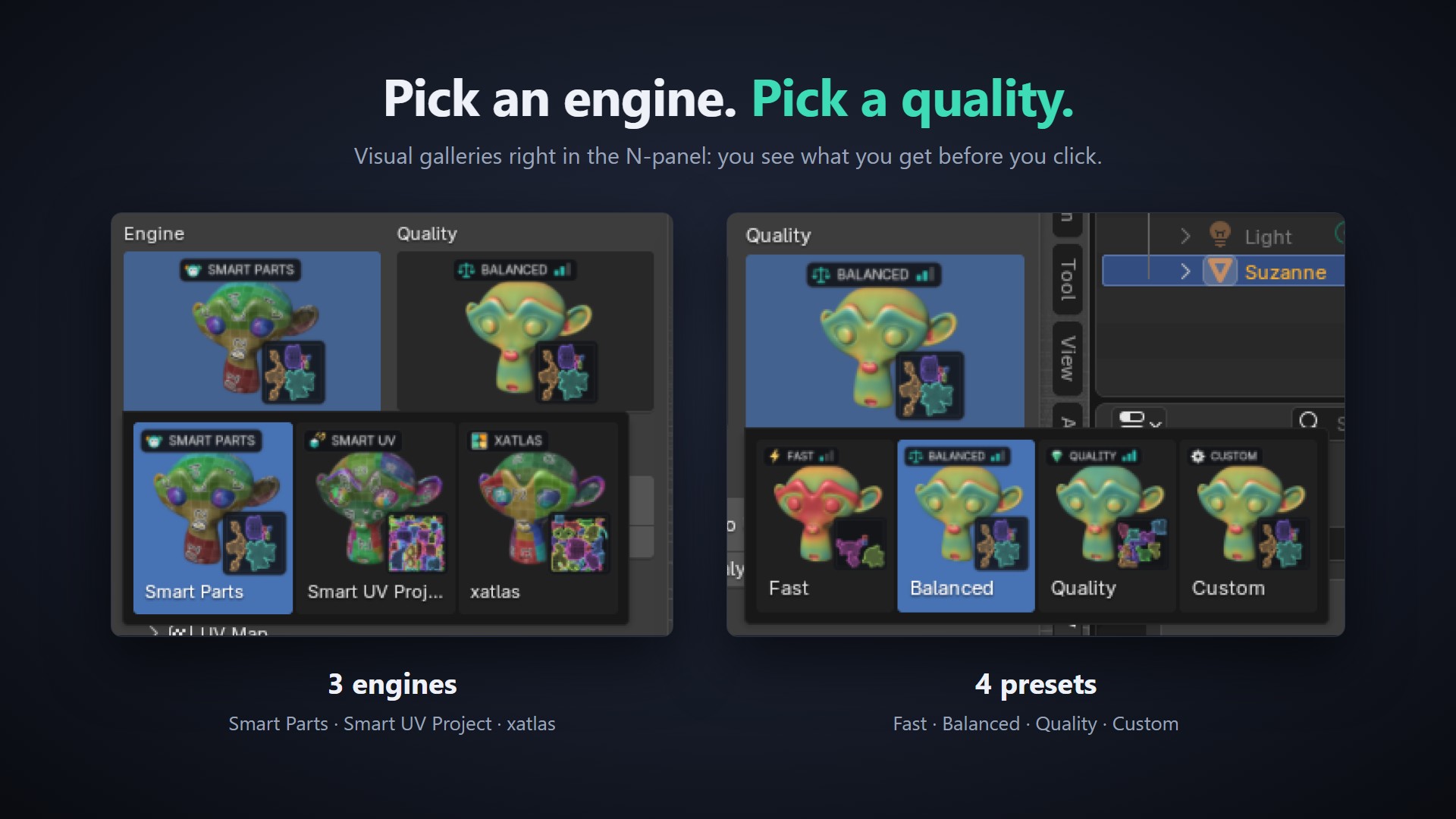

Pick the engine from the picture gallery at the top of the panel.

Engine	How it works	Use it when
Smart Parts (default)	Finds the parts of the model from its shape (sharp and concave edges, topology), flattens each part, measures the distortion and splits again only where a chart is above the target. Small charts are merged back when the stretch allows.	Almost always. Fewest islands and low stretch.
xatlas	Chart segmentation from the bundled xatlas library, then flattened with Blender's own solver and packed.	Hard-surface and CAD-like meshes, or as a second opinion. Often the lowest distortion with more islands.
Smart UV Project	Blender's built-in Smart UV Project, run with the add-on's packing and margin.	As a quick baseline to compare against.

5Quality presets

Setting	Fast	Balanced	Quality
Distortion threshold	0.25	0.12	0.06
Max split rounds	2	4	6
Unwrap method	Angle Based	Minimum Stretch	Minimum Stretch
Merge small charts	Off	On	On
Pack shape	Bounding Box	Exact Shape	Exact Shape

Custom unlocks the Custom Quality sub-panel so you can set every value yourself (see below).

Measured with Balanced and Smart Parts: a 7.9k-face Suzanne unwraps in about 1.4 s, a 10.2k-face UV sphere in about 2.0 s.

6Settings reference

Seams

Setting	Default	What it does
Existing Seams	Keep My Seams	Keep My Seams: seams you marked yourself are always kept; seams from a previous Auto UV run are replaced. Replace All: clears every seam of the processed faces first.
Sharp Angle	60°	Edges sharper than this always become seams. Set 180° to turn it off.

Smart UV Project ignores existing seams. That is how Blender's operator works.

UV Map

Setting	Default	What it does
UV Map	Active UV Map	Active UV Map writes into the active map (one is created if the mesh has none). Named UV Map writes into the map named below.
Name	AutoUV	Name of the UV map to write into. Created if missing. Only used with Named UV Map.

Packing

Setting	Default	What it does
Texture Size	2048	Texture resolution (256 to 8192) used to turn the pixel margin into UV space.
Margin	4 px	Space between islands in pixels at that texture size (0–64).
Rotate	On	Rotate islands for a tighter pack.
Uniform Density	On	Scale islands to the same texel density before packing. Only changes Smart UV Project; Smart Parts and xatlas always keep every chart at its true 3D size.
Pack Together	On	Pack all selected objects into one shared UV space. Off: each object fills 0–1 on its own.

Custom Quality (Quality set to Custom)

Setting	Default	What it does
Distortion Threshold	0.12	Charts with more distortion than this are split again. Lower = less stretch, more islands.
Max Split Rounds	4	How many times a chart may be split (0–10).
Unwrap Method	Minimum Stretch	Angle Based (ABF), Conformal (LSCM) or Minimum Stretch (SLIM; falls back to Angle Based where SLIM is not available).
Pack Shape	Exact Shape	Bounding Box (fastest), Convex Hull, or Exact Shape (tightest).
Merge Small Charts	On	Merge small charts back into their neighbours when the distortion allows it.

Convex Hull packing can be slow in Blender's packer (several seconds up to about a minute on big meshes). Exact Shape is usually faster and tighter.

Results

After every Auto Unwrap or Analyze UVs the Results panel lists the operation and engine, islands, seams, flipped faces, average and max distortion against the target, and the time. The same summary appears in Blender's status bar. Distortion Colors in this panel makes Analyze UVs also paint a heatmap (see next section).

7Analyze UVs

Analyze UVs measures the active UV map of the selected meshes without changing it. It works on any UVs: hand-made, from another tool, or from Auto UV.

Reports islands, average and max distortion and flipped faces in the Results panel and the HUD.
With Distortion Colors on, it also writes a color attribute named AutoUV_Distortion and switches the viewport color to Attribute so you see a heatmap on the mesh (blue = low stretch, red = high stretch).
In the UV Editor's Auto UV panel you can toggle Blender's own stretch overlay and its type (area or angle).

8Viewport HUD

The HUD is a small card drawn in the 3D Viewport with the latest result: engine, islands, seams, flipped faces, time, a distortion bar against your target and a mini UV layout preview.

Turn it on with the HUD button in the header of the Auto UV panel, or in the Viewport HUD sub-panel.
In Edit › Preferences › Add-ons › Auto UV Unwrap you can set:
- Corner: Top Left, Top Right, Bottom Left (default) or Bottom Right
- HUD Scale: 0.5–2.0, multiplied by Blender's Resolution Scale
- HUD Opacity: background opacity, 0.2–1.0
- Show UV Layout: show or hide the mini UV preview

The distortion bar turns from green to amber to red as the value goes from 0 to twice your target.

9Reading the results

Value	Meaning
Islands	Number of separate UV pieces. Fewer usually means fewer visible seams in your texture.
Seams	Number of seam edges on the mesh.
Distortion	How much the UVs stretch the surface, per face, weighted by area. 0 is perfect. Below the target (0.12 on Balanced) a checker texture looks even; above about 0.25 stretching becomes visible.
Avg / Max	Average over the whole mesh and the worst chart.
Flipped	Faces that are mirrored in UV space. Should be 0.
Time	Wall-clock time of the whole operation.

10Tips

Guide the cuts: mark a few seams where you want them (for example on the back of a character) and keep Keep My Seams on. Auto UV builds the rest around them.
Too many islands? Raise the distortion threshold (Custom) or use Fast. Too much stretch? Use Quality or lower the threshold.
Hard-surface models: lower Sharp Angle (for example 30–45°) so every hard edge becomes a seam.
Organic models: raise Sharp Angle or set it to 180° and let Smart Parts decide.
Several objects sharing one texture: select them all and keep Pack Together on.
Only part of a mesh: select those faces in Edit Mode. Other faces are left as they are.
Compare engines: unwrap, read the HUD, Ctrl+Z, switch engine, unwrap again.

11Troubleshooting

The Auto Unwrap button is greyed out

Select at least one mesh object in Object Mode, or enter Edit Mode on a mesh. Curves, text and other object types are not supported; convert them to mesh first.

"xatlas not available" in the preferences

The bundled xatlas wheel could not load on this system. Reinstall the extension from the .zip. Smart Parts and Smart UV Project keep working without it.

An object was skipped

The status bar shows a "Skipped …" warning with the reason. Other selected objects are still processed. Possible reasons:

shares mesh with …: two selected objects use the same mesh data (linked duplicates). The mesh is unwrapped once, through the first object.
linked library data: the mesh comes from a linked .blend and cannot be edited. Make it local first.
hidden, no faces, no faces selected (Edit Mode), no UV map (Analyze UVs).

My own seams disappeared

Existing Seams is set to Replace All, or the engine is Smart UV Project, which ignores seams. Press Ctrl+Z, set Keep My Seams and use Smart Parts or xatlas.

Packing takes very long

Pack Shape is set to Convex Hull. Switch to Exact Shape or Bounding Box (Custom Quality), or use a preset.

The HUD does not show

Turn on the HUD button in the panel header, then run Auto Unwrap or Analyze UVs once. Check the corner setting in the add-on preferences, and make sure viewport overlays are visible.

Does it need the internet or a GPU?

No. Everything runs offline on the CPU inside Blender. There is no AI model, no account and no network access.

Item	Supported
Blender	4.2 and newer, tested on 4.5 LTS and 5.2
Windows	x64
macOS	Apple Silicon (arm64) and Intel (x64)
Linux	x64
Dependencies	None to install. xatlas is bundled inside the extension.
Network	Not used

Auto UV Unwrap DocsVersion 1.1 · Blender 4.2 and newer
